Introduction to Heat Staking

Heat staking is a precision joining process that utilizes pulsed heat and applied pressure to bond thermoplastic materials. This technique is crucial in applications where traditional fastening methods such as adhesives, screws, or rivets are unsuitable. Heat staking provides a durable and repeatable joint, making it ideal for complex assemblies in various industries.

Technical Process

The heat staking process involves several critical steps to ensure a robust and reliable bond:

• Part Positioning: The plastic part is positioned on a base with a pre-formed stake or boss.
• Heating: The thermode (or "hot bar") with a defined cavity descends onto the part. Pulsed heat is applied, heating the plastic to just above its glass transition temperature (Tg), where it becomes malleable.
• Forming: Simultaneously, force is applied, causing the heated plastic to deform and flow into the cavity, forming the required shape and bonding to the adjacent part.
• Cooling: While maintaining pressure, the part is cooled using compressed air or other cooling methods. This solidifies the plastic, ensuring a strong, fixed joint.
• Release: The thermode is retracted, and the finished assembly is removed from the fixture.

Advantages of Heat Staking

Heat staking offers several advantages over other joining methods:

• Material Compatibility: Can join a wide range of thermoplastics, including polycarbonate (PC), glass-reinforced nylon (GFN), polypropylene (PP), polystyrene (PS), and acrylonitrile butadiene styrene (ABS).
• Design Flexibility: Allows the use of the base material to form the stud without design changes or additional materials.
• Cost-Effectiveness: Eliminates the need for consumables such as adhesives or screws.
• Precision and Repeatability: Provides consistent results with precise control over temperature, force, and cooling.
• Low Stress: Minimizes stress on the assembly, preserving the integrity of delicate components.

Heat Stake Design Variations

Various heat stake designs are available to suit different applications, each offering unique benefits:

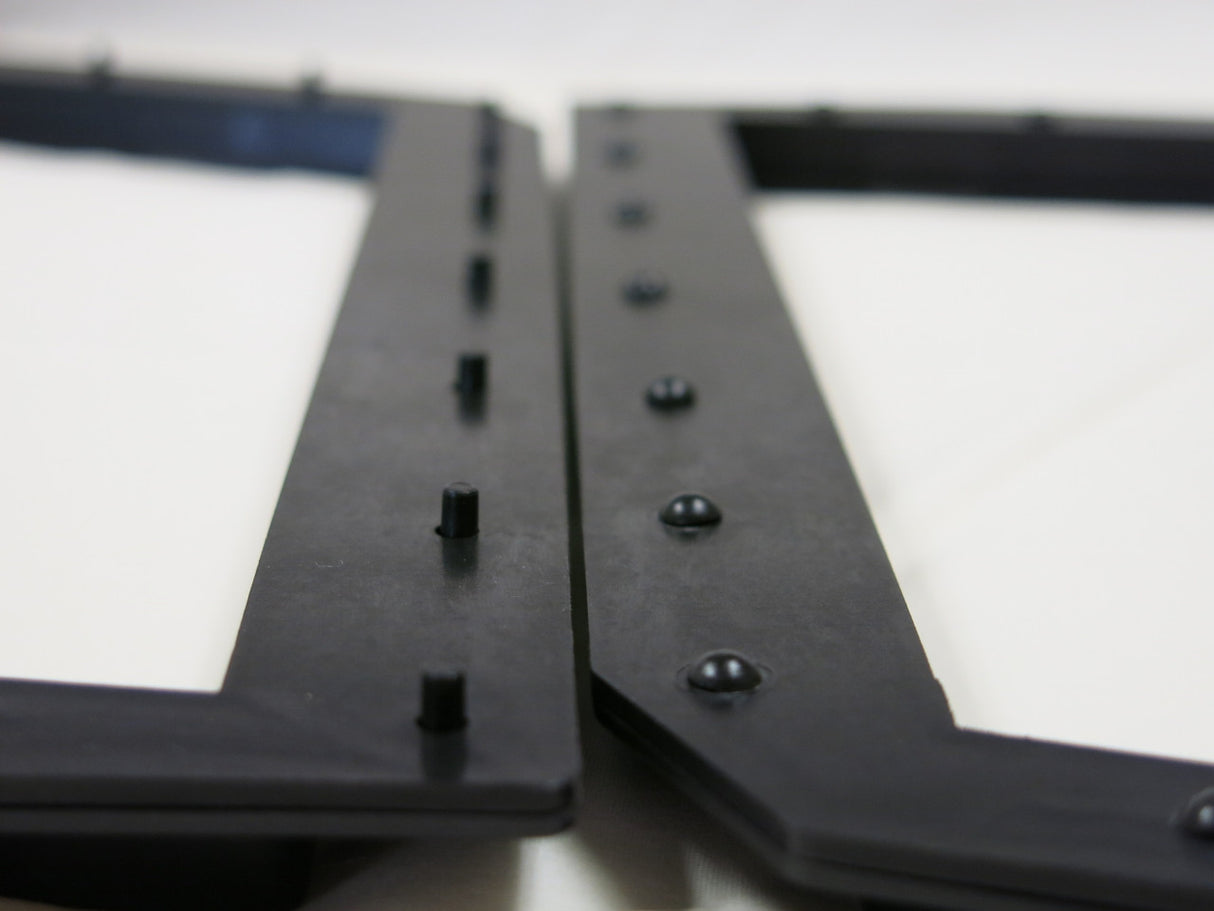

• Dome Shape: Ideal for small-sized pins.
• Double Dome Shape: Used for medium-sized pins.

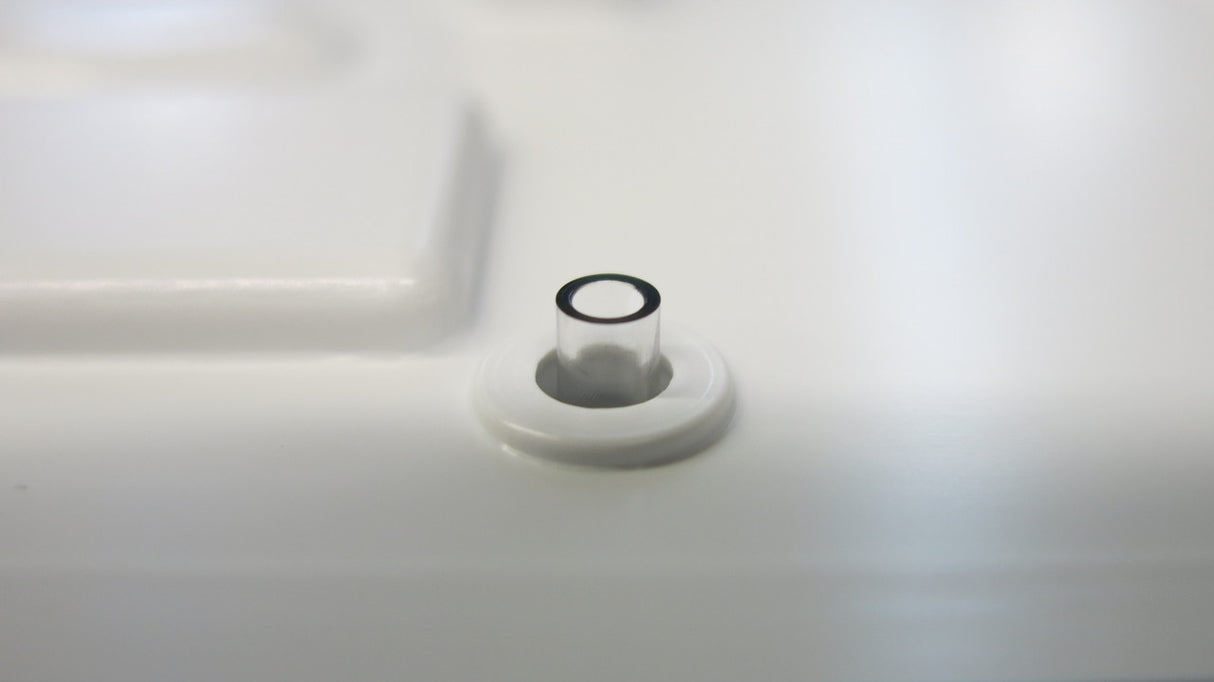

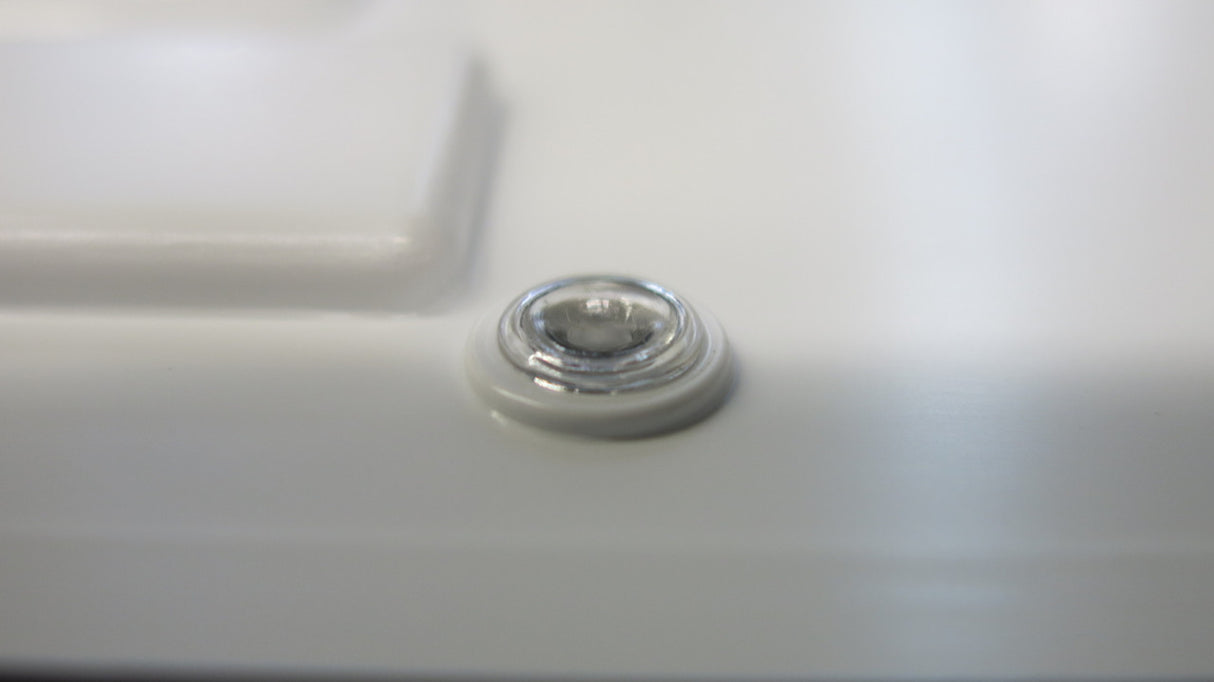

• Tubular or Hollow Stake: Suitable for large-sized pins, providing strong retention with minimal material.
• Rollover or Captive Stake: Ensures secure fastening, particularly in dynamic applications.

Comparative Advantages of Heat Staking Technology

Typical Applications

Heat staking is employed in various industries, including automotive, medical, IT & multimedia, and consumer electronics. The process is suitable for:

• Thermoplastics
• Polycarbonate

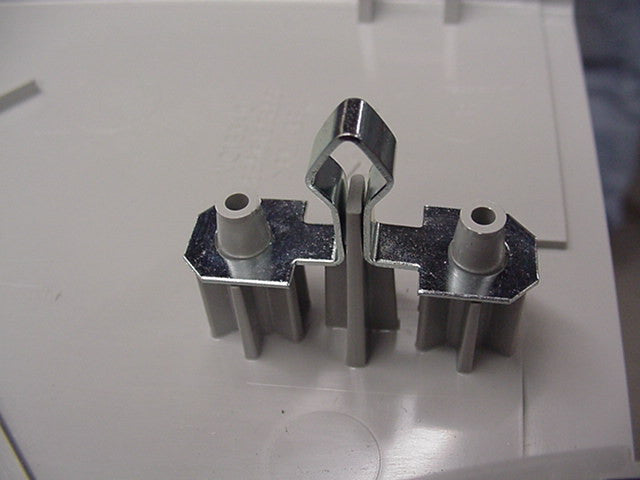

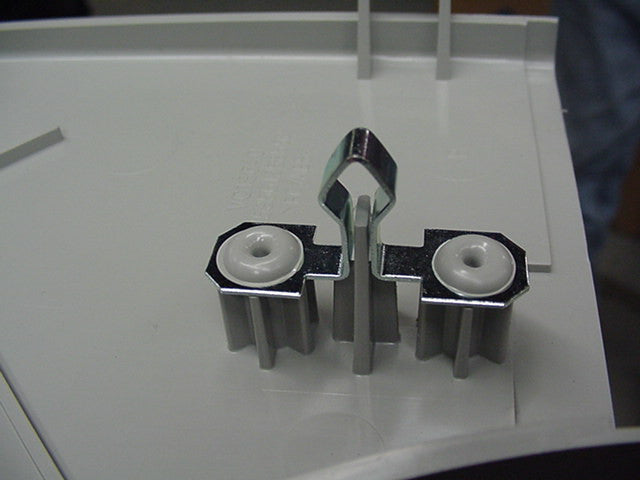

• Metal to plastic

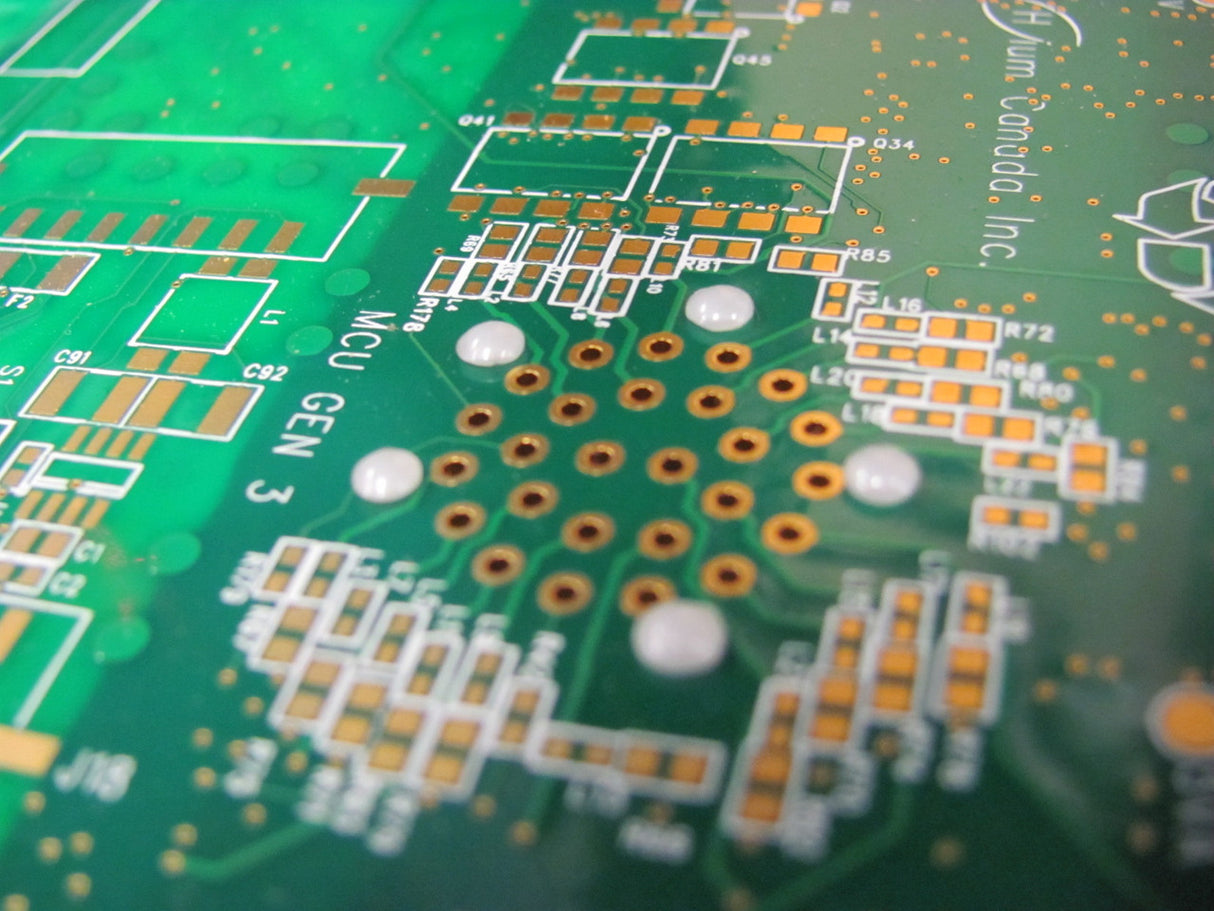

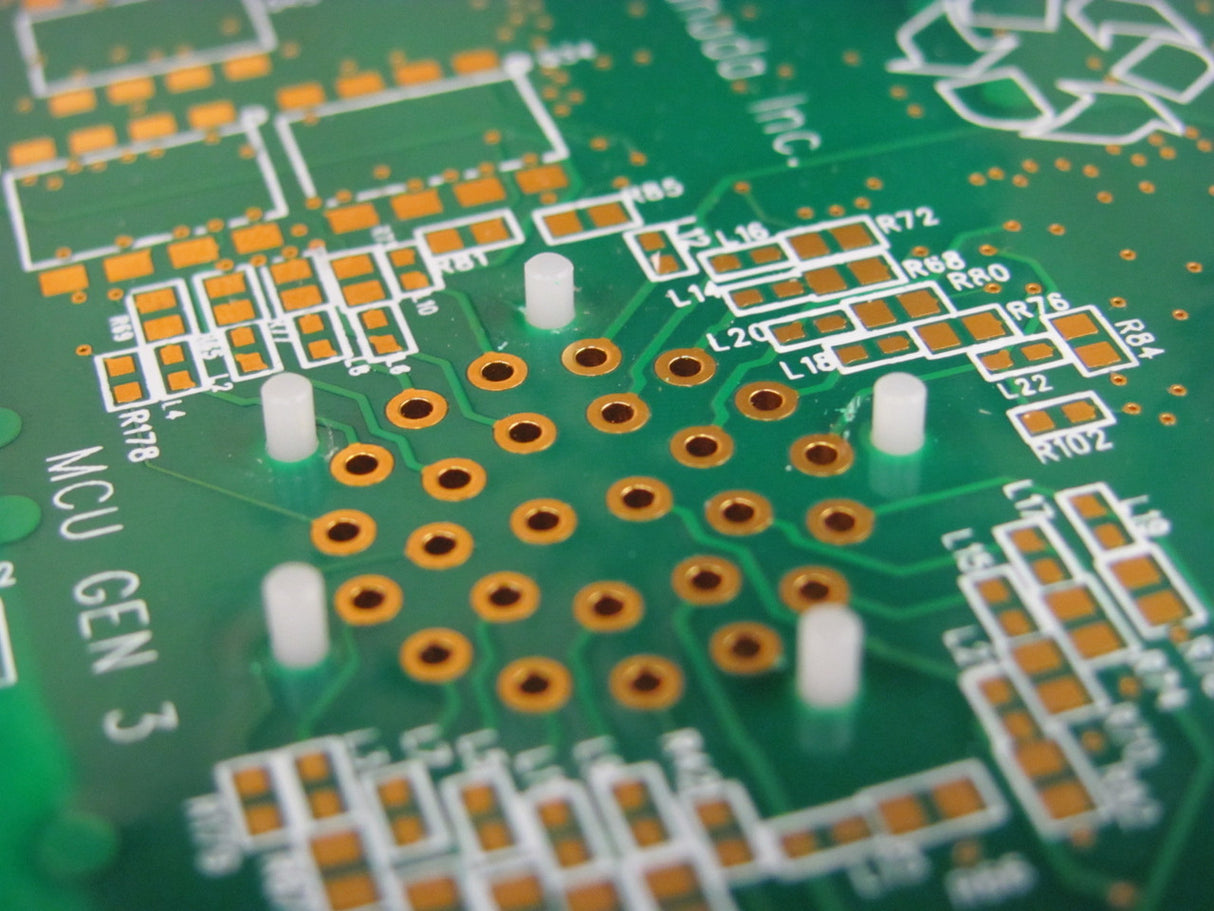

• PCBs
• Glass-filled fiber plastic
